Steering Assembly – WR17

• First, the black plastic steering tracks are bolted to the inside of the hull
• Second, the steering cable is run through the small projections in the hull that face the stern (The plastic sleeve prevents the finished cable end from pulling into the hull)
• The cable clamps are applied to the hull so that the steering cables run straight toward the steering tracks
• Aluminum steering rails are slotted into the steering tracks
• The inside end of the steering cable is fastened to the steering rails
• Finally, the steering redals are installed into the steering rails

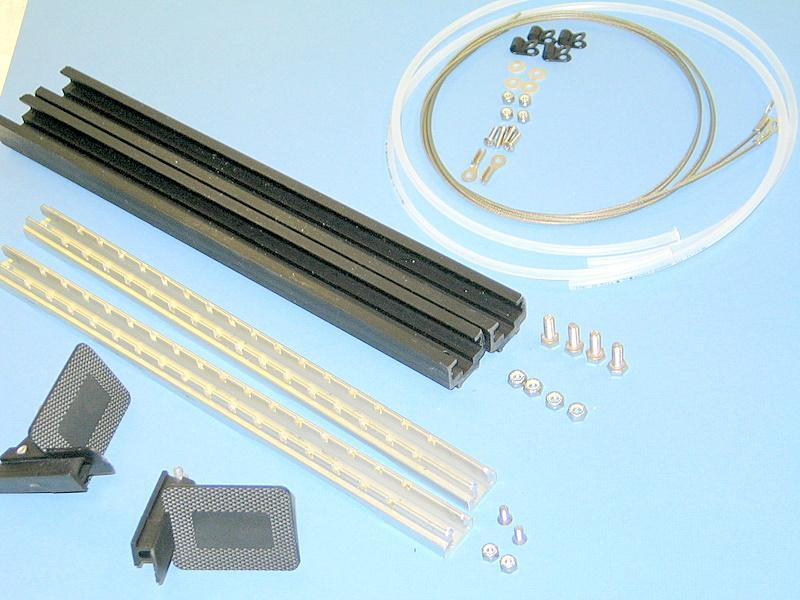

The steering assembly includes:

• Steering cables (4 bolts, 4 lock nuts, 4 washers, and 4 cable clamps)
• Steering tracks (2 screws and 2 lock nuts)
• Steering rails (4 .25-20 x1" Hex nuts and 4 .25-20 lock nuts)
• Steering pedals.
