WindRider 17 Lazy Jack

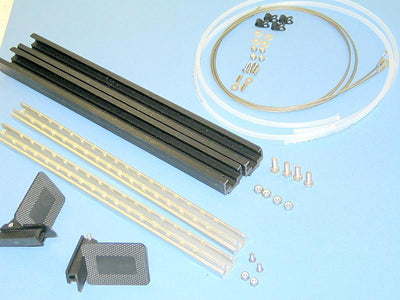

Consists of:

Lazy Jack Installation and Assembly Instructions

Using a measuring tape find the one quarter, half and three quarters points of the boom
Mark these points on the bottom side of the boom. This is where the fairleads will be installed
The fairleads should be installed so that their eyes open toward port and starboard sides
Using each fairlead as a guide, tap and pre-drill the holes to install with the included rivets
Next, tie the 4 stainless steel snap-hooks to the ends of the 11' lines
Connect one end of each of the 11' lines to the bow shackle on the mast hound
At the other end of each 11' line connect the snap-hook to its own stainless steel ring

(*For the next part the mast will need to be raised with the boom connected and sail raised to get the correct spacing*)

Tie one end of the 28' line to stainless steel ring "A" (Port)
Run the line through the front fairlead under the boom and back up to the opposite stainless steel ring "B" (Starboard)
From ring "B" run the line down through the middle fairlead and back to ring "A"
Next, run the line down through the rear fairlead under the boom
Finally, tie off the end of the line to stainless ring "B"
